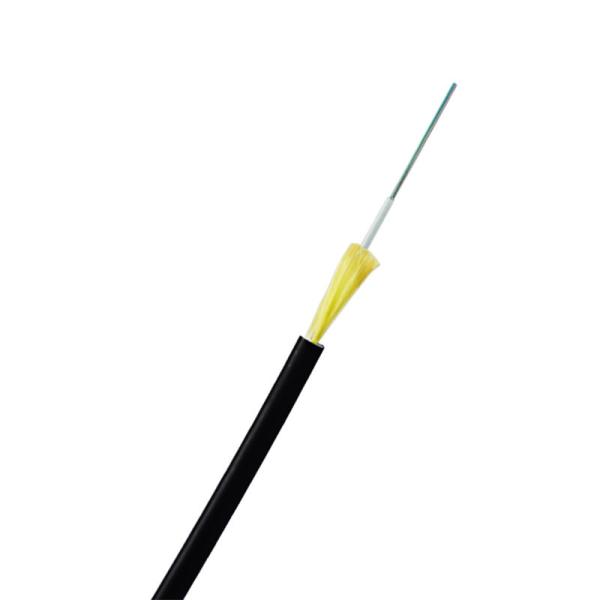

Indoor Outdoor 12 Fiber Optic Cable Multimode OM3 LSZH Central Loose Tube

  • 1
  • 2
  • 3

Brand Name : GoreLink

Model Number : GL-IO-312L

Certification : ISO,RoHS,REACH

Place of Origin : Made in China

MOQ : 1000m

Payment Terms : T/T,Paypal,Western Union

Delivery Time : As per the order quantity

Packaging Details : Wooden Drum/Spool+Carton

Product Name : Indoor/Outdoor Fiber Cable

Fiber Count : 12 Fiber

Fiber Type : Multimode OM3

Cable Design : Central Loose Tube

Jacket Material : LSZH

Color : Black

Part Number : GL-IO-312L

Applications : Indoor/Outdoor application

Core Count : Up to 24 cores

Features : Indoor/Outdoor Cable

Contact Now

Indoor/outdoor fiber optic cable are designed for installations where the cable needs to pass through both indoor and outdoor environments. This Indoor/outdoor Fiber Optic Cable offers a reliable, efficient, cost-effective solution for modern communication infrastructure needs. Their ability to seamlessly transition between indoor and outdoor environments makes them a versatile choice for various applications, from commercial buildings and data centers to industrial complexes and telecom networks. The loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunications-grade optical fiber. It is lightweight and reduced-diameter. Its durable design allows it to withstand installations and operations.





Application



  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks



General Specification





   Fiber Mode

  Multimode OM3

   Fiber Count  12 Core
   Cable structure  Central loose tube

   Strength Member

  Glass Yarn

   Cable Diameter

  6.0mm

   Cable Jacket

  LSZH

   Cable Color

  Black

   Cable length

  As per the order request

   OPTICAL PERFORMANCE

   Attenuation(dB/km)

  850nm≤3.0dB            1300nm ≤1.0dB

   Core diameter(um)

  50±2.5

   Cladding diameter(um)

  125±1.0

   Wavelength  850nm / 1300nm
   Operating Temperature  -20~75deg
   Storage Temperature  -40~80deg











Indoor Outdoor 12 Fiber Optic Cable Multimode OM3 LSZH Central Loose Tube







Ordering Information





 PART NO.

DESCRIPTION

 GL-IO-302L

Indoor/Outdoor Fiber Optic Cable, 2 Fiber, MM OM3,LSZH,Black

 GL-IO-304L

Indoor/Outdoor Fiber Optic Cable, 4 Fiber, MM OM3,LSZH,Black

 GL-IO-306L

Indoor/Outdoor Fiber Optic Cable, 6 Fiber, MM OM3,LSZH,Black

 GL-IO-308L

Indoor/Outdoor Fiber Optic Cable, 8 Fiber, MM OM3,LSZH,Black

 GL-IO-312L

Indoor/Outdoor Fiber Optic Cable, 12 Fiber,MM OM3,LSZH,Black

 GL-IO-324L

Indoor/Outdoor Fiber Optic Cable, 24 Fiber,MM OM3,LSZH,Black

*  Customized
