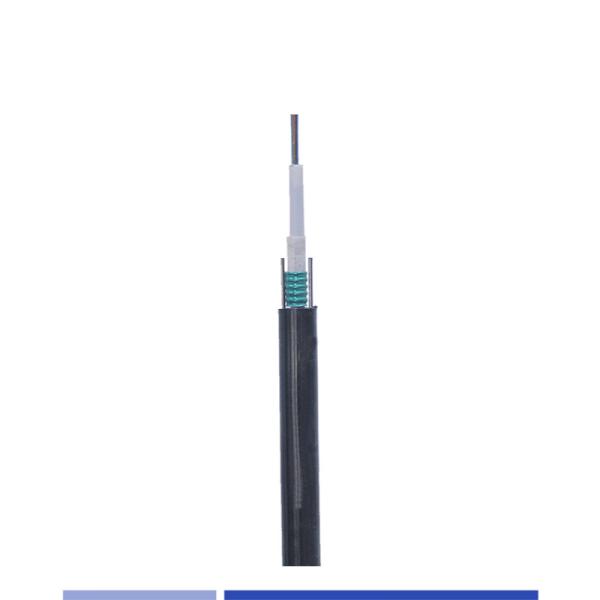

6 Fiber Outdoor Fiber Optic Cable Singlemode OS2 Central Loose Tube Cable PE

  • 1
  • 2
  • 3

Brand Name : GoreLink

Model Number : GL-GYXTW-806

Certification : ISO,RoHS,REACH

Place of Origin : Made in China

MOQ : 1000m

Payment Terms : T/T,Paypal,Western Union

Delivery Time : As per the order quantity

Packaging Details : 2km/Wooden Drum or Customized

Product Name : Outdoor Fiber Optic Cable

Part Number : GL-GYXTW-806

Fiber Count : 6 strand

Fiber Type : Singlemode OS2 G652D

Cable Type : Single Armored

Cable Design : Central loose tube

Jacket Material : PE

Application : Outdoor

Suitable for : Duct, Aerial laying

Armor Type : Corrugated steel tape with parallel steel wire strength

Features : Light weight,small diameter

Contact Now

This outdoor Fiber Optic Cable is designed for outside plant applications and intended for communication network connects requiring cable installed within duct systems or lashed to aerial messenger wire structures. The loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunications-grade optical fiber. It is lightweight and reduced-diameter.





Application



  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks



General Specification





   Fiber Mode

  Singlemode G652D

   Fiber Count  6 Core
   Cable structure  Central Uni-Loose tube
   Cable Armor  Corrugated Steel Tape Armor

   Strength Member

  2x Parallel steel wire

   Cable Diameter

  7.0-8.0mm

   Outer Jacket

  PE

   Cable Color

  Black

   Cable length

  As per the order request

   OPTICAL PERFORMANCE

   Attenuation(dB/km)

  ≤0.36 dB @1310nm

   Core diameter(um)

  9±2.5

   Cladding diameter(um)

  125±1.0

   Wavelength  1310nm / 1550nm









6 Fiber Outdoor Fiber Optic Cable Singlemode OS2 Central Loose Tube Cable PE







Ordering Information





PART NO.

DESCRIPTION

GL-GYXTW-804

Outdoor Armored Fiber Optic Cable,4 Fiber,Singlemode G652D,PE,Black,GYXTW

GL-GYXTW-806

Outdoor Armored Fiber Optic Cable,6 Fiber,Singlemode G652D,PE,Black,GYXTW

GL-GYXTW-812

Outdoor Armored Fiber Optic Cable,12 Fiber,Singlemode G652D,PE,Black,GYXTW

GL-GYXTW-824

Outdoor Armored Fiber Optic Cable,24 Fiber,Singlemode G652D,PE,Black,GYXTW

* Customized
